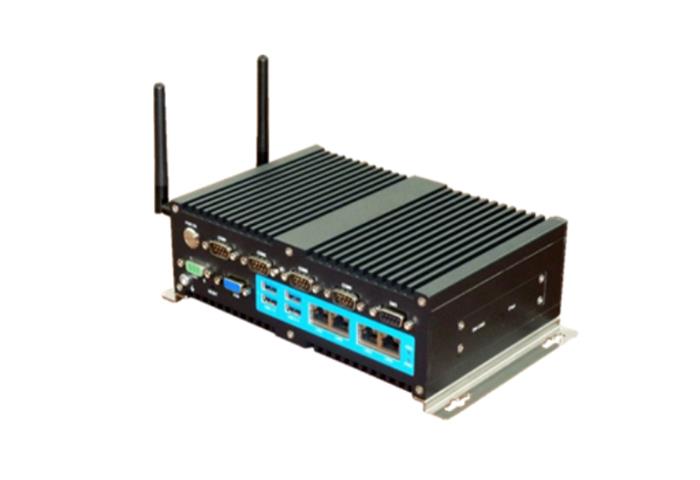

High Performance Smart Gateway -- SEC-0702A

Contact us

Specifications such basic needs, but in a function with minor discrepancies, please contact sbs@sbs.com.cn us, we might have a special OEM product specifications meet your requirements.


Based on 8th Generation Intel® CoreTM i7 processor, SEC-0702A is an industrial smart gateway solution featured with high reliability, high performance, and rich communication capabilities. SEC-0702A provides wide operating temperature range from-40to +70 and with wide input voltage range from 9V to 36V. Passing all related routine testing and with IEC specifications compliant, SEC-0702A can be widely applied in industrial automation segments, like smart grid, energy management, smart logistics, etc.

Small Size

X86 software compatibility

Wide operating temperature range

Wide power supply input range

Long embedded lifecycle support

Fanless design with aluminum shell

Rugged design against harsh environment



8th Generation Intel® CoreTM i7 processor

Onboard 8GB DDR4 memory (extendable to 16GB)

Display support VGA/HDMI/eDP

On board SSD or CFAST, and HDD

Support 1 WLAN

Support 1 4G/3G

Support 4 10/100/1000Mbps Ethernet (Profinet and EtherCAT available at request)

Support 4 USB3.0/2.0

Support 4 UART, 8 bit DI/O

Wide input voltage range: 9V~36V


Various OS support, including Windows 10, Linux, Vxworks…


Operating temperature range:-40 to +70

High performance and flexibility

Chassis size: 210mmx140mmx65mm (LxWxH)
